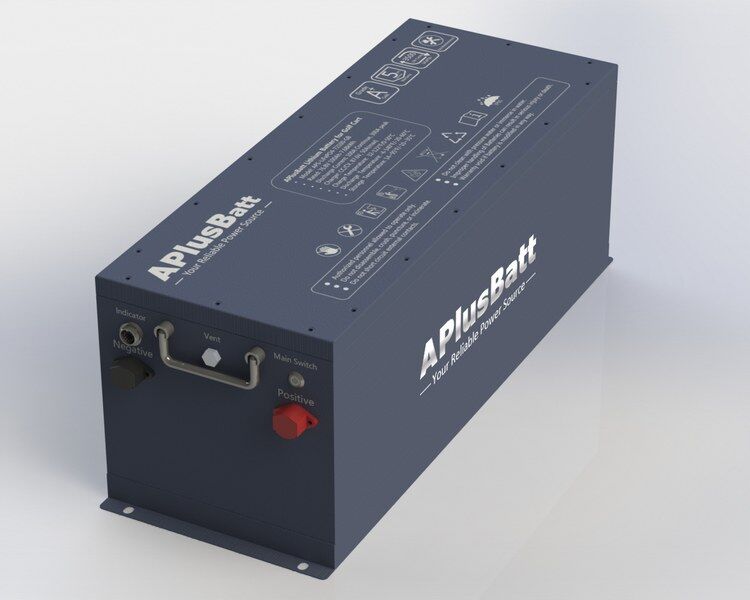

APS-72150-GB

  • Safe and long lifespan;
  • Fast charging and strong acceleration;
  • Screw mount.
  • RS485+CAN+ Main Switch;
  • Coulomb calculation and battery indicator.

72V150Ah LiFePO4 Battery Specification

Model APS-72150-GB
Nominal Voltage 76.8V
Nominal Capacity 150Ah
Stored Energy 11.52kWh
Life Cycles 3500 times
Self-discharge Rate ≤3%/month
Cell Voltage 3.2V
Battery Material LiFePO4
Continuous Discharge Current 200A
Max Discharge Current 400A (60s)
BMS Protections Protection battery from over-heating, over-charging, over-discharge, overload, short circuit etc.
BMS Communication RS485,CANBlueTooth
Charge Temp. 32-122°F/0-50°C
Discharge Temp. -4-140°F/-20-60°C
Storage Temp. 14~95°F/-10~35°C
Weight 216lbs(98kg)
Dimension(L*W*H)mm 950*310*250
Material Steel
IP Rate(waterproof) IP65
